FIT MODEL

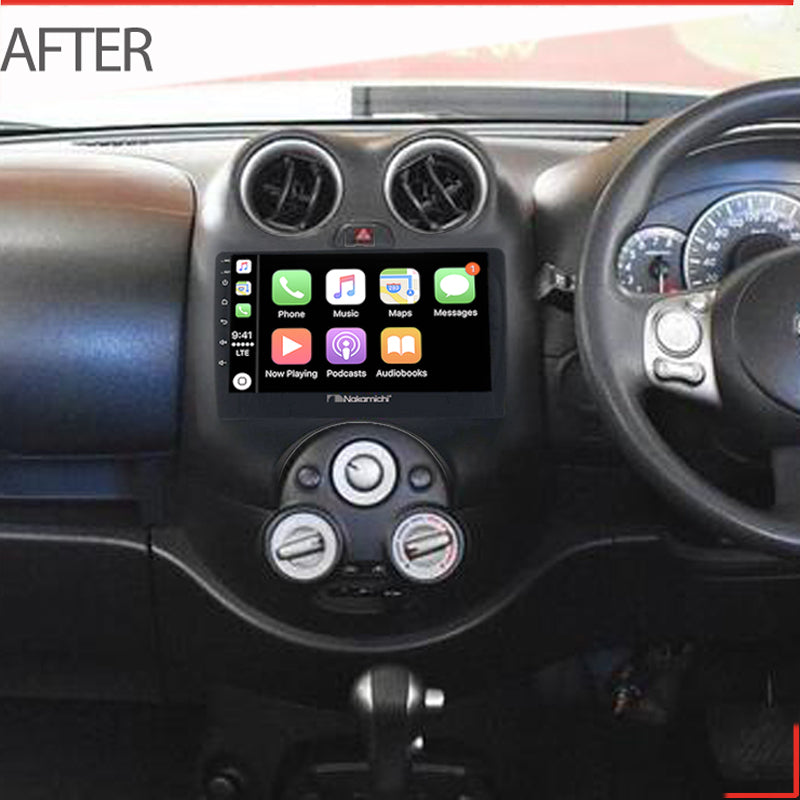

For Nissan Micra 2011-2014
NOTICE
- Compatible with Steering Wheel Controls.
- Please send us message of dash photo with car year and model when you purchase, so we can send you the compatible harness.
MAIN FEATURES
WIRELESS APPLE CarPlay
The Ultimate Co-Pilot. Enjoy CarPlay without cable. CarPlay is a smarter, safer way to use your iPhone while drive. You can get directions, make calls, send and receive messages, and enjoy your favourite music. All on your car's built-in display. And with iOS, CarPlay introduces all-new APP categories and customised wallpapers for your CarPlay Dashboard.
WIRELESS ANDROID AUTO (WIRED for some specific phone brand)
Pair your phone without cable, now hit the road. Pair your phone to car display -- your Android APPS show up onscreen, just like that. Tap to get driving directions or talk to send a text. Even call hands-free. Android Auto is made to help you focus on the road. And have fun along the way. Just plug in and go!
BLUETOOTH
Communication system BT: 5.0 +EDR
Frequency band: 2.4GHZ
Max Range: 5m
RADIO
FM Frequency: 87.5-108.0MHZ
AM Frequency: 522-1620KHZ
Presets: 18 FM ,12 AM
AUDIO
Max Power: 4×50W
Pre-output(V): 4V/10KΩ
Pre-output impedance: ≤600Ω
Speakers impedance: 4-8Ω
AUX-L (at back of the unit)
AUX-R (at back of the unit)
VIDEO
R-CAM: Reverse Camera Video Input (at back of the unit)
V-IN: Extra Video Input (at back of the unit)
V-OUT1: Video Output 1 (at back of the unit)
V-OUT2: Video Output 2 (at back of the unit)
USB INTERFACE
CP/AA: USB Connection for CarPlay / Android Auto (at back of the unit)
USB: USB Connection for Music or Video (at back of the unit)
OTHER INPUT AT BACK OF THE UNIT
ANT: Radio Antenna Input (at back of the unit)
MIC: Microphone Input (at back of the unit)
RCA CABLE
FL_OUT: Front Left Speaker Output
FR_OUT: Front Right Speaker Output
RL_OUT: Rear Left Speaker Output
RR_OUT: Rear Right Speaker Output
SUB_OUT: Subwoofer Output
UART_RX/UART_TX: Canbus Connector
PARK: Parking Brake
AMP: Amplifier Control
PACKAGE INCLUDED
1 x Nakamichi Head Unit with Fascia
1 x Main Harness
1 x RCA Cable
1 x User Manual
1 x Microphone
2 x USB Cable
* For different car models, it might need different accessories package. It is NORMAL if they are not exactly as same as including listing.
GENERAL SPECIFICATION
TFT Screen Size: 9"
Display Resolution: 1240×600
Contrast Ratio: 500
Brightness: 500nit
Operation Voltage: 14.4V(10.5-16V)
USB Readable/chargeable: (5±0.25V/1A)
Video Format: H264/MP4/AVI/MKV/FLV
Audio Format: MP3/APE/AAC/FLAC
